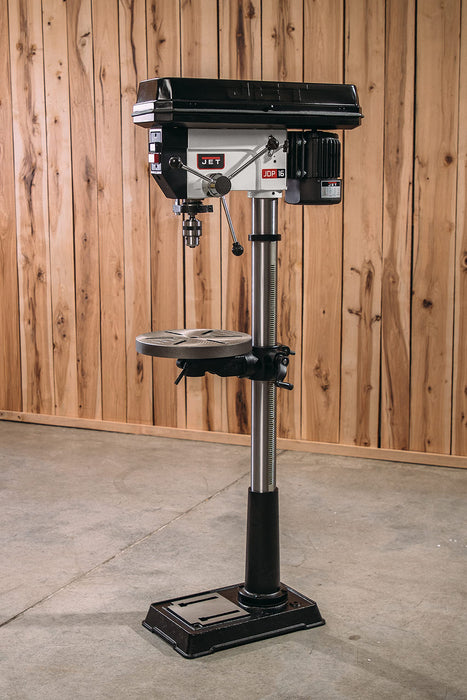

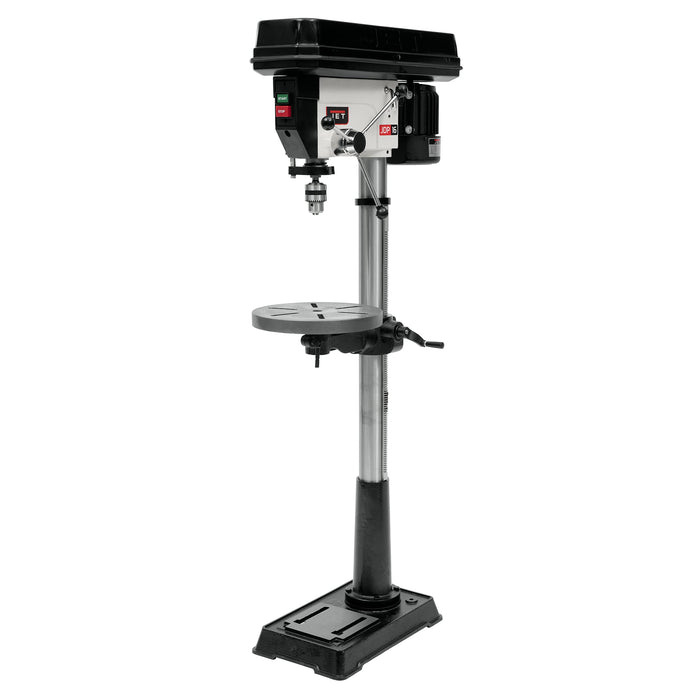

JET 17-Inch Floor Drill Press, 3/4 HP, 1Ph 115V

Details for JET 17-Inch Floor Drill Press, 3/4 HP, 1Ph 115V

Features:

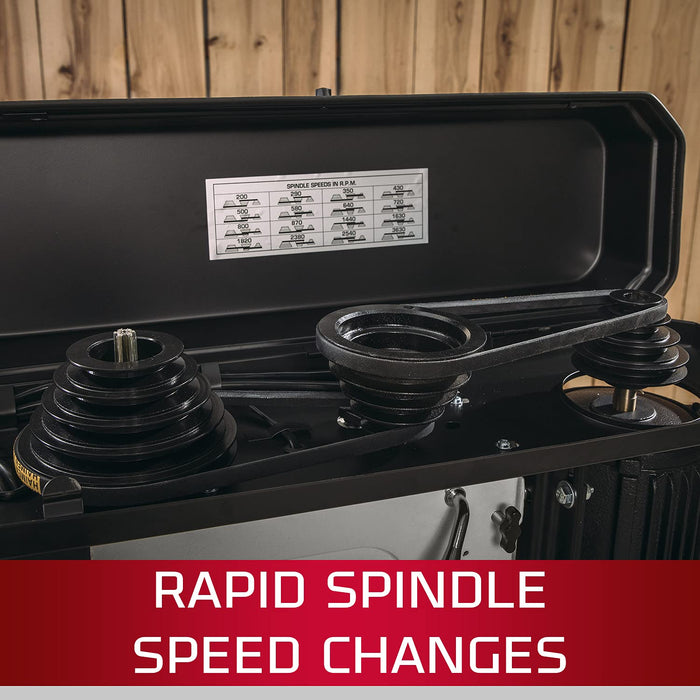

• VARIABLE-SPEED: 3/4-HP motor has 16 speeds from 200 to 3,630 RPM.
• REPETITION: Adjustable tension spindle return spring for repeat drilling to the same depth.

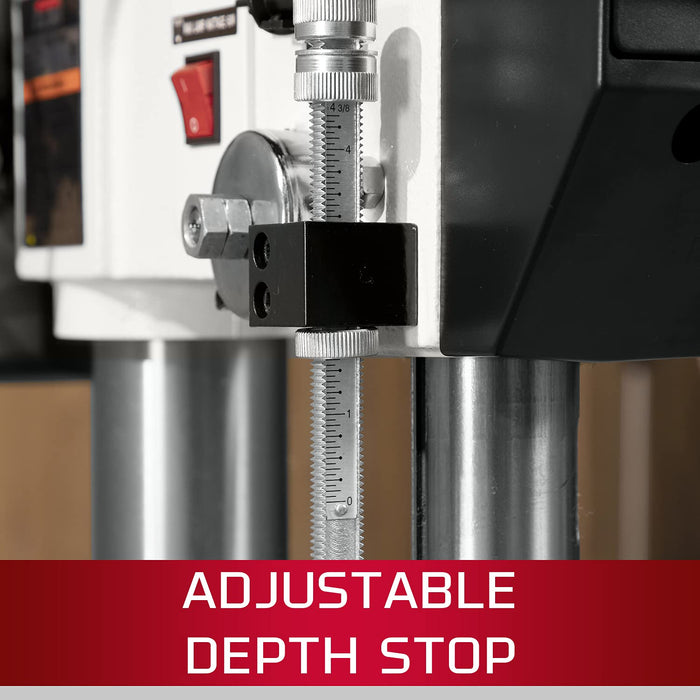

• ACCURACY: Depth stop has a quick-set bolt for fast, accurate adjustments.
• VISIBILITY: Built-in worklight (bulb not included) provides additional visibility.
• VERSATILITY: Quick-release crank-operated worktable can tilt +/- 45°.

Details:

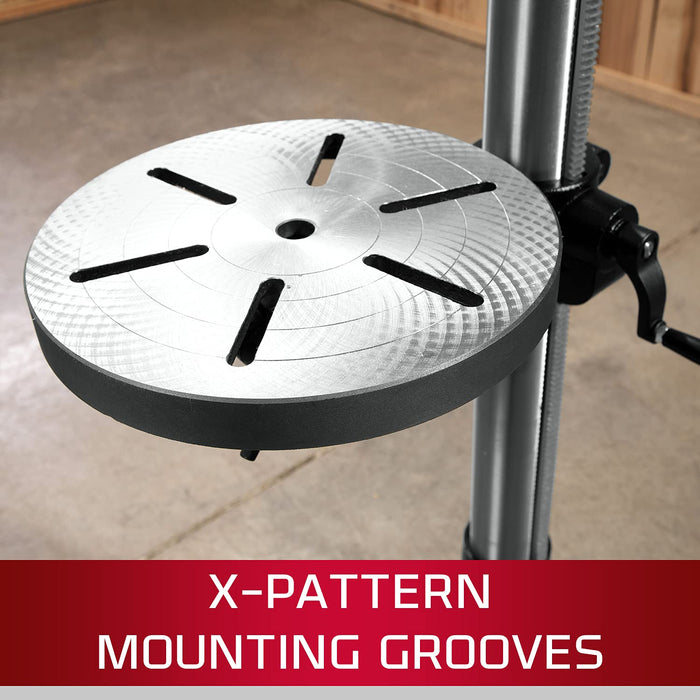

A true woodworker's drill press, the industrial-style Jet 354169 JDP-17MF 16-1/2-inch drill press offers 16 speeds, enabling you to choose the best speed for the job. It comes equipped with a quick-release, crank-operated worktable, worklight, X-pattern mounting grooves, depth stop, and adjustable tension spindle return spring--ideal for repetitive drilling of the same depth. Industrial-style drill press for professional or serious home woodworkers (view larger). Quick release crank (view larger). 354169 JDP-17MF 16-1/2-Inch Drill Press At a Glance: 3/4-horsepower, 1 phase motor with 16 speeds Hinged metal belt and pulley cover provides easy access to motor mount Quick-release, crank-operated worktable Built-in work light provides additional visibility Five-year limited warranty Features Ideal for the professional workshop, the Jet 354169 JDP-17MF 16-1/2-inch drill press spins bits up to 5/8 of an inch with 16 speeds from 200 to 3,630 rpm. A 3/4-horsepower induction motor drives the belts, and it can run off either 115-volt outlets (for which it comes prewired) or 230-volt sources. The large 13-3/4-inch worktable glides easily with rack-and-pinion adjustment and tilts 45 degrees right or left to accommodate your needs. A hinged metal belt-and-pulley cover provides easy access to the motor mount, allowing for rapid spindle speed changes. To personalize the press for your comfort and peace of mind, you can adjust the tension on the spindle return spring, as well as lock out the start button to protect others in your absence. The table's X pattern mounting grooves also allow you to mount a fence when the table is in reverse position. A built-in work light (bulb not included) provides additional visibility of your workspace. What's in the Box One Jet 354169 JDP-17MF 16-1/2-inch drill press, drill chuck and key, and operating and assembly instructions. Easy access to the quick adjustment motor mount. Specifications Motor: 3/4 horsepower, 1 phase, 115/230 volt Swing: 16-1/2 inches Spindle: 4-3/8-inch travel; 29-1/8-inch maximum distance to table Spindle speed: 200 to 3,630 rpm Drilling capacity: 5/8-inch Column diameter: 3-1/8 inches Table size: 13-3/4 inches Base size: 11-1/8 inches by 19-5/8 inches Dimensions: 23.5 inches by 12.8 inches by 54.5 inches Weight: 200 pounds Warranty: 5 years, limited JET JDP-17MF 17" Drill Press (354169) The JET JDP-17MF floor model drill press will be a great addition to the shop. It comes with a 5/8-inch drill chuck and a powerful 3/4-horsepower, 115-volt motor that can also run on 230-volt. 16 spindle speeds range from 200 up to 3,630 rpm. A heavy-duty switch is mounted on the front of the press and a light socket is supplied in the drill head so you can see what you are doing in a dark corner of the shop (bulb not included, sorry). Another big feature is the positive depth stop that you can set so you will be consistent in drilling depth. A heavy round table with several slots will let you position your vise or jigs where you need them. The table will also swivel and can be raised or lowered. The spindle is an MT-2 so you can use MT-2 tapered bits. FEATURES Hinged metal belt and pulley cover coupled with quick adjustment motor mount allows rapid changing of spindle speeds Rotating, +45 degrees tilting, crank-operated worktable with quick-release clamp On/Off switch located on front of the drill press head for safety A 1/2" diameter external positive depth-stop with dual nut locking feature for quick adjustment Adjustable tension spindle return spring Spindle is supported by high quality ball bearings Built-in work light; bulb not included Drill chuck and key included SPECIFICATIONS Swing (in): 16-1/2 Drilling Capacity (in): 5/8 Chuck Size (in): 5/8 Spindle Travel (in): 4-3/8 Spindle Distance to Base (in): 49 Spindle Distance to Table (max/in): 29-1/8 Table Size (dia/in): 13-3/4 Spindle Taper: MT-2 Column Diameter (in): 3-1/8 Number of S
